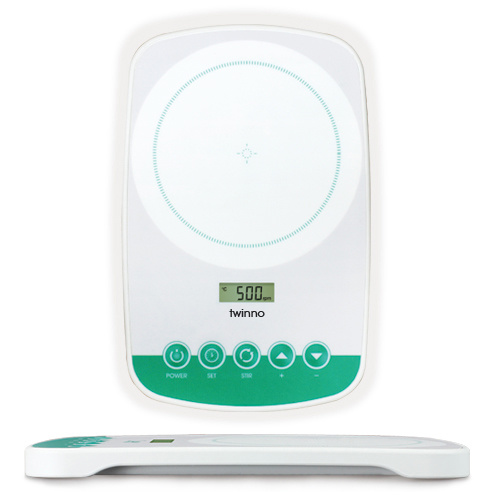

MD110 Ultra-thin Digital Display Magnetic Stirrer/Mixer
Product Features
60-2000 rpm (500ml H2O)
LCD screen shows working and setting status
11mm ultra-thin body, stable, save space
Quiet and noiseless.No loss and no maintenance
Clockwise, counterclockwise (automatic) switch
Timing shutdown setting
Operating temperature 0-50°C
Compliance with CE, does not interfere with electrochemical measurements
Specifications
| Rated Voltage | VAC | 100-240 |
| Rated frequency | Hz | 50-60 |
| Output Voltage | VDC | 12 |
| Input Power | W | 5 |
| Magnetic stirrer | Quadrupole drive coil | |
| Display | LCD | |
| Speed Range | rpm | 60-2000 |
| Amount of mixing | ml | 500 (2000 rpm 22 mm stirrer bar) |
| Stirring bar | mm | 22 |
| IP Rate | IP65(EN 61010 EN 61326) | |
| Relative humidity | % | 85 |
| Relative temperature | °C | 0-60(Working status) |
| Storage temperature | °C | -10-+70 |
| Housing material | PC | |
| Panel material | PET | |
| Weight | kg | 0.3 |
| Load capacity | kg | 1.5F.S |
| Panel size | mm | 100 |
| Dimensions | mm | 11x169x109(W*D*H) |
| Cable length | m | 1.7 |
After Sales Service
* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
FAQ
What is the mini order quantity?
MOQ: generally 1 unit/piece/set
What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.
What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.
How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.
How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
