We can provide isotropic and anisotropic magnets in shapes of block, disc, ring, tile with different directions of magnetization according to customer's demand.

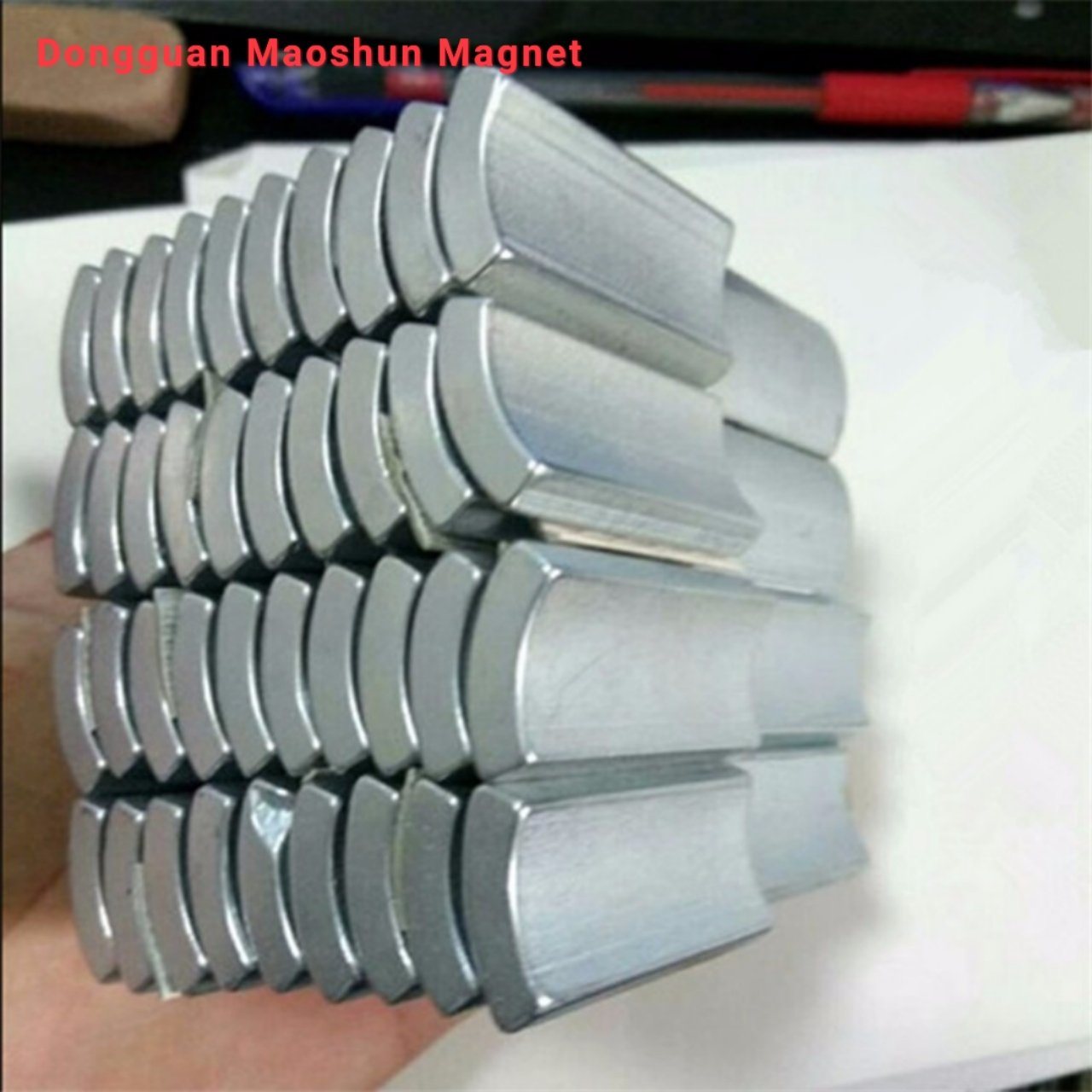

Strong Permanent Sintered NdFeB Block Magnet
Applications: NdFeb block Magnet are Widely used in different applications, such as sensors, motors, rotors, wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on.
Material: NdFeB (Neodymium Iron Boron)
Shape: Block ( Disc, Ring, Countersunk, Segment, Trapezoid, Irregular shapes are available, Customized shapes for Sintered NdFeB Magnet are also available)
Tolerance in size: +/-0.1mm (+/-0.05mm available)
Type of coating: Nickel, Ni-Cu-Ni, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and so on.
Grade: N35-N50; N33M-N50M; N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
Direction of magnetization: Through the thickness
Neodymium-iron-boron magnet is one kind of the permanent magnets.
Material Grade of NdFeB magnets:
Magnet N-( N35, N38, N40, N42, N45, N48, N50),
Magnet M-(35M, 38M, 40M, 42M, 45M, 48M),
Magnet H-(35H, 38H, 40H, 42H, 45H),
Magnet SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH),
Magnet UH-( 28UH, 30UH, 33UH, 35UH, 38UH),
Magnet EH-(28EH, 30EH, 30EH, 33EH, 35EH),
Application of NdFeB magnet: Toys, package, Printer, Switchboard, Phone, voice coil motors (VCM's) in hard disk drives, high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors, loudspeakers etc.











Strong Permanent Sintered NdFeB Block Magnet
Applications: NdFeb block Magnet are Widely used in different applications, such as sensors, motors, rotors, wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on.
Material: NdFeB (Neodymium Iron Boron)
Shape: Block ( Disc, Ring, Countersunk, Segment, Trapezoid, Irregular shapes are available, Customized shapes for Sintered NdFeB Magnet are also available)
Tolerance in size: +/-0.1mm (+/-0.05mm available)
Type of coating: Nickel, Ni-Cu-Ni, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and so on.
Grade: N35-N50; N33M-N50M; N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
Direction of magnetization: Through the thickness
Neodymium-iron-boron magnet is one kind of the permanent magnets.
Material Grade of NdFeB magnets:
Magnet N-( N35, N38, N40, N42, N45, N48, N50),
Magnet M-(35M, 38M, 40M, 42M, 45M, 48M),
Magnet H-(35H, 38H, 40H, 42H, 45H),
Magnet SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH),
Magnet UH-( 28UH, 30UH, 33UH, 35UH, 38UH),
Magnet EH-(28EH, 30EH, 30EH, 33EH, 35EH),
Application of NdFeB magnet: Toys, package, Printer, Switchboard, Phone, voice coil motors (VCM's) in hard disk drives, high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors, loudspeakers etc.
project ccoating | Coating thickness | color | Service temperature | PCT | Damp heat resistance | Salt fog resista-nce | Corrosion resistance |
Blue white zinc | 8-15μm | Bluish white | ≤160ºC | >48hr | general | ||
Color zinc | 10-15μm | Iridescent | ≤160ºC | >72hr | general | ||
Nickel | 20-30μm | silvery | ≤200ºC | >500hr | >500hr | >200hr | excellent |
Ni-Cu-Ni | 20-30μm | silvery | ≤200ºC | >48hr | >500hr | >72hr | good |
Ni-Sn | 20-30μm | silvery | ≤160ºC | >96hr | >500hr | >72hr | good |
epoxy | 10-30μm | black | ≤120ºC | >48hr | >500hr | >96hr | excellent |
Phosphating | 1-3μm | Black gray | bad | ||||
Ni-Au | 10-20μm | Golden | >96hr | >500hr | >72hr | excellent |
