Product Application of Mineral Magnet Separator Machine for Low Price
Hot Sale Wet Magnetic Separator Machine mainly consists of such four parts as cylinder, magnetic system, cell and transmission parts. Cylinder is made of 2-3mm welded and bent stainless steel and the terminal cover is forged aluminum plate which is connected with stainless bolts.The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.
Technical Parameters of Mineral Magnet Separator Machine for Low Price
| Model | Magnetic Strength (mT) | Input Size (mm) | Cylinder Speed (r/min) | Power (kw) | Capacity | Weight (kg) | |
| Ore (t/h) | Slurry(m3/h) | ||||||
| CTB600x900 | ≥120 | ≤1 | 40 | 1.1 | 8-15 | 24 | 850 |
| CTB600×1200 | ≥120 | ≤1 | 40 | 1.5 | 10-20 | 32 | 1000 |
| CTB600×1800 | ≥120 | ≤1 | 40 | 2.2 | 15-30 | 48 | 1300 |
| CTB750×1200 | ≥120 | ≤1 | 35 | 2.2 | 15-30 | 48 | 1500 |
| CTB750×1800 | ≥120 | ≤1 | 35 | 3.0 | 20-45 | 72 | 1800 |
| CTB900×1800 | ≥135 | ≤1 | 28 | 4.0 | 25-55 | 90 | 2400 |
| CTB900×2100 | ≥135 | ≤1 | 28 | 4.0 | 30-65 | 100 | 2650 |
| CTB1050×1800 | ≥145 | ≤1 | 22 | 5.5 | 35-70 | 110 | 3800 |
| CTB1050×2100 | ≥145 | ≤1 | 22 | 5.5 | 45-88 | 140 | 4150 |
| CTB1050×2400 | ≥145 | ≤1 | 22 | 5.5 | 45-88 | 140 | 4500 |
| CTB1200×2100 | ≥145 | ≤1 | 19 | 7.5 | 62-110 | 160 | 5800 |
| CTB1200×2400 | ≥145 | ≤1 | 19 | 7.5 | 82-120 | 192 | 6200 |
| CTB1200×3000 | ≥145 | ≤1 | 19 | 7.5 | 80-150 | 240 | 6800 |
| CTB1500×3000 | ≥145 | ≤1 | 14 | 11 | 90-170 | 270 | 8200 |
| CTB1500×4000 | ≥145 | ≤1 | 14 | 11 | 115-220 | 350 | 9000 |
Feature of Mineral Magnet Separator Machine for Low Price
1) Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4) low energy consumption
5) fine beneficiating results
6)simple structure and easy to maintain.
Working principle of Mineral Magnet Separator Machine for Low Price
When the raw materials flow into the tank body of the magnetic separator firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back is the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall in the ore concentrate box under the effect of gravity. the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe as tailings.

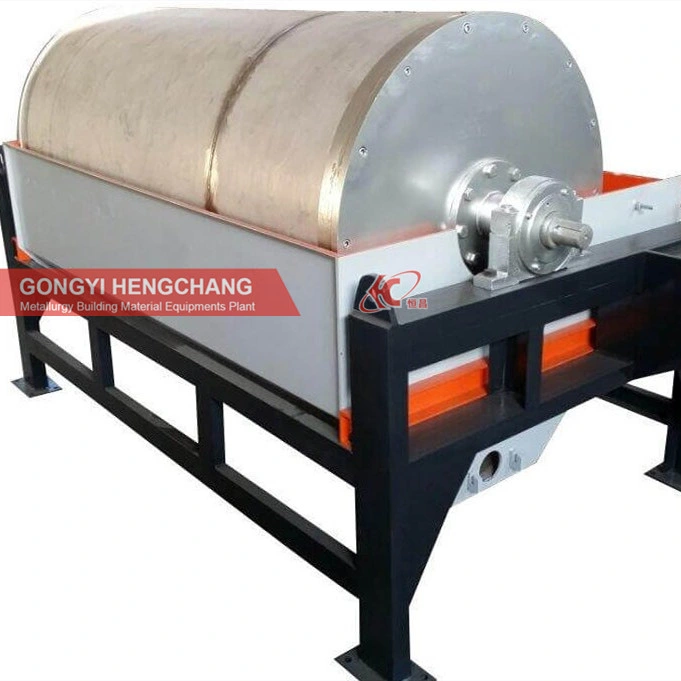

Detailed Images of Mineral Magnet Separator Machine for Low Price
Working & Delivery of Mineral Magnet Separator Machine for Low Price
Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry
